Novasolar that produces and sells solar water heaters.

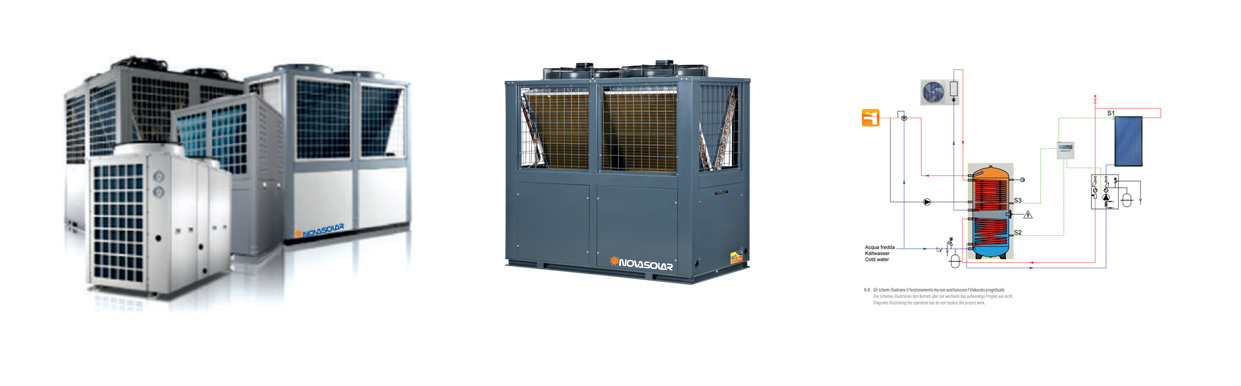

Novasolar Commercial air to heat pump water heater uses to save energy as much as 60-80%, when compared to oil fired boilers or electric water heaters. It is ideal for commercial applications like in hotels, hospitals, spas, hostels etc. where hot water is needed in large volumes. This range saves on operating costs by tapping into the heat in the air in a safe and affordable way. You can satisfy your customers while saving on your energy bills.
|
Description |
NSHP-12 |
NSHP-20 |
NSHP-26 |
NSHP-40 |
NSHP-52 |
NSHP-80 |
NSHP-92 |
||||
|
Standard Configuration |
|
|
|||||||||
|
Cabinet |
Galvanized steel/Epoxy painting |
|
|
||||||||
|
Compressor |
Copeland Scroll Compressor |
|
|
||||||||
|
Refrigerant |
R417a ECO friendly |
|
|
||||||||
|
Heat exchanger |
Tube in Tube HE |
|
|
||||||||
|
Expansion valve |
Saginomiya/Sanhua EEV |
|
|
||||||||
|
AC Contactor |
Schneider |
|
|
||||||||
|
Defrosting |
Auto-defrosting (reversing) |
|
|
||||||||
|
Technical Specifications |
|
|
|||||||||
|
Heating capacity (kW) |
12 |
20 |
26 |
40 |
52 |
80 |
92 |
||||
|
Input Power (kW) |
2.5 |
4.6 |
6.2 |
9.3 |
12.5 |
18.5 |
21.5 |
||||
|
COP |
4.8 |
4.3 |
4.2 |
4.3 |
4.2 |
4.3 |
4.3 |
||||
|
Input current (A) |
12 |
8.5 |
12 |
18 |
22.8 |
37 |
42 |
||||
|
Max. Input power (kW) |
3.8 |
6.8 |
8.2 |
11.7 |
16 |
24 |
27 |
||||
|
Max. Input current (A) |
20.3 |
12.1 |
15.5 |
22.5 |
28.6 |
43 |
48 |
||||
|
Power supply (V/Ph/Hz) |
220V/1Ph/50Hz |
380-420V/3Ph/50Hz |
|
|
|||||||
|
Hot water yield (L/h) |
230 |
400 |
560 |
850 |
1120 |
1722 |
2010 |
||||
|
Rated/Max water outlet (℃) |
55/60 |
||||||||||
|
Max Outlet Gas pressure (Mpa) |
≤3.0 |
||||||||||
|
Electric shock protection |
I |
||||||||||
|
Waterproof rating |
IPX4 |
||||||||||
|
Pipeline water pressure (Mpa) |
≤0.7 |
||||||||||
|
Water Pipe diameter |
DN25 |
DN40 |
DN50 |
||||||||
|
Unit dimension (mm) |
750*750*885 |
810*810*1110 |
1505*692*1206 |
1500*800*1845 |
1850*1000*1980 |
2000*1100*1980 |
|||||
|
N.W.（kg） |
101 |
133 |
140 |
290 |
398 |
500 |
590 |
||||
|
Noise (dB(A)) |
≤58 |
≤60 |
≤62 |
≤66 |
≤68 |
≤70 |
≤70 |
||||
|
Advised water flow (m3/h) |
1.74 |
3.1 |
4.5 |
6.8 |
9 |
14 |
15.8 |
||||
