Novasolar that produces and sells solar water heaters.
The NOVA SOLAR Medium temperature air sources heat pump water heater is a heat pump integrated system that utilizes the heat pump technology to provide efficient way to heat water with minimum consumption of electricity. NSASHP pulls heat from surrounding air (-50C to +450C) and deposits the heat into the tank. The result is hot water with cooler and dehumidified air as aby-product.
The NOVA SOLAR Medium temperature air sources heat pump water heater is a heat pump integrated system that utilizes the heat pump technology to provide efficient way to heat water with minimum consumption of electricity. NSASHP pulls heat from surrounding air (-50C to +450C) and deposits the heat into the tank. The result is hot water with cooler and dehumidified air as aby-product.
The heated refrigerant is usually conveyed through a heat exchanger that isTube in Tube for commercial and wrapped around the outside of the tank for Domestic heat pumps.
The refrigerant heats the tank water by conduction, transferring heat from the condenser coil to the water inside the tank.

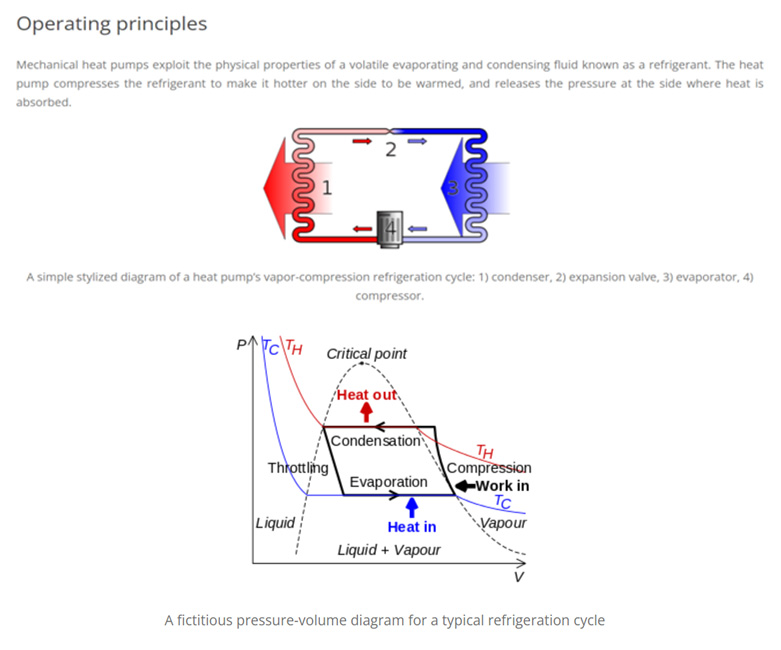

NOVA SOLAR Heat pump is a device in which there frigerant R134A/R410A/R417A/R407C/R22 is continuously changing the shape from gas to liquid and vice versa. It pumps out the solar energy from the air in the room or surrounding’s and together with electrical energy consumed by compressor it give sout the total heating capacity which is accumulated in the water storage tank.

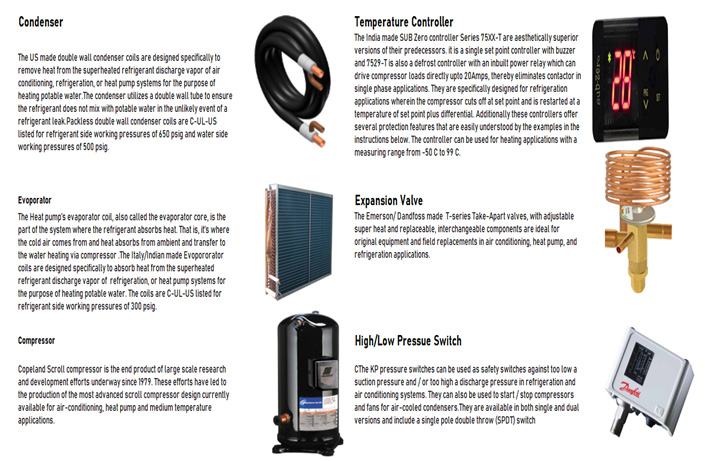

Evaporator is an air-refrigerant heat exchanger. In the evaporator the refrigerant is vaporized at low pressure and relative low temperature.
Because of vaporization the heat transfer form air to refrigerant starts. Vaporized refrigerant comes in the compressor where the pressure goes higher and also the temperature.
From compressor the vaporized and high temperature steam goes in the condenser (refrigerant-water) where again the heat is transferred from refrigerant to water.
The refrigerant is now in liquid shape idler high pressure.
After it flows thought the expansion valve it reaches the basic shape and he process goes around again. The circuit is in process until the water temperature in the water storage tank reaches the set point in the thermostat controller.
ENERGY SAVING:
HEAT PUMP SAFETY:
HEATPUMP COMPRESSOR::

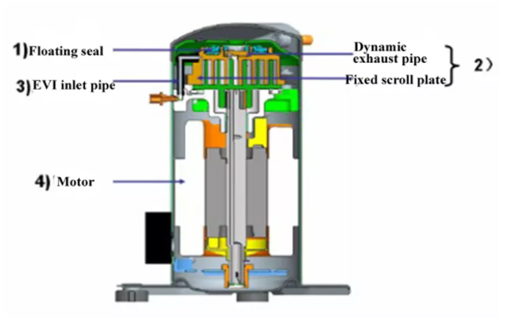

Copland scrollZR/ZW series heating and cooling application compressor: Being internationally renowned brand dedicated compressor for heating & cooling, it is more reliable in system matching and quieter in operation.
With intelligent defrosting design, it can revolutionarily solve the bottlenecks of heat exchangers in cold winter such as frosting and slow heating, etc., allowing you to spend a more comfortable winter.
HEAT PUMPS WORK AT -5C:

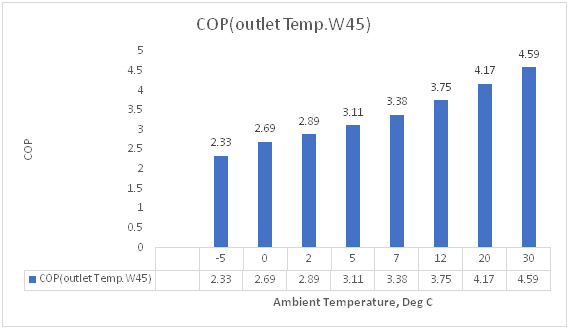

NOVA SOLAR-COP CURVES

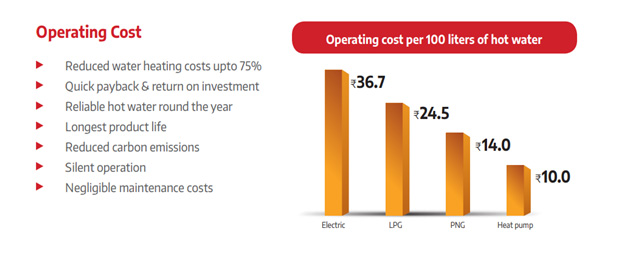

NOVA SOLAR-ECONOMIC ANALYSIS
NSASHP: HEAT PUMPS-APPLICATIONS
NSASHP air source heat pumps can be applied for hot water and floor heating.
Wide Range of Applications: these heat pumps could meet the hot water and house heating requirements of different places, such as villas, houses, schools, factories, hotels, hospitals, spa centers, sauna centers, greenhouses, flower gardens, farms, etc.
